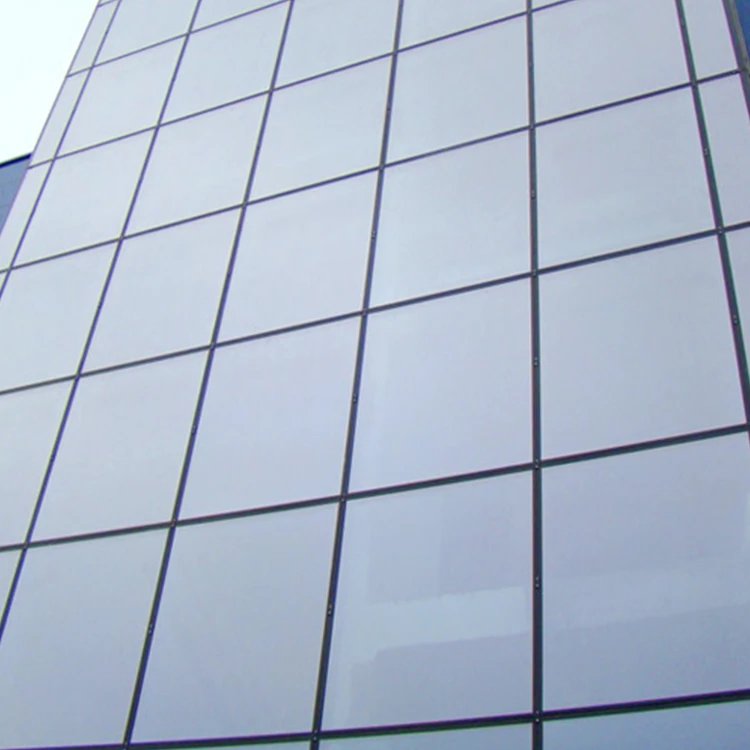

Morden Insulated Curtain Wall

Think of it as the building's high-performance, energy-efficient skin. It's a frameless, insulated curtain wall system primarily constructed from heavy-duty alloy aluminium (T3-T8 temper). The key structural members boast a robust 3.0mm wall thickness. We pair this with a wide range of glass options – from standard toughened to advanced Low-E – creating a sleek, modern facade that doesn't compromise on efficiency.

Key Features:

• Stops Heat Dead in its Tracks: The secret sauce? That integrated thermal barrier inside our aluminum profiles. It slashes heat transfer dramatically. Pair it with IGUs or Low-E glass, and you'll see significant reductions in heating and cooling bills. The energy savings stack up fast.


• Built Like a Tank: That 3.0mm thick aluminum isn't just specs on paper. It delivers real-world rigidity, handling punishing wind loads and seismic challenges where needed, while also supporting hefty glass panels without breaking a sweat. This system is engineered for the long game.


• Locks Out the Weather: Forget leaks and drafts. Our advanced gasket systems and precision engineering create a fortress against water and air infiltration. It keeps the harsh stuff out and your conditioned air exactly where it belongs – inside.


• Quiet Inside: Tired of street noise? The combo of robust framing, top-tier seals, and the right glazing (laminated glass works wonders) actively dampens the external racket. You get noticeably calmer, quieter interiors – no small feat.


• Looks Sharp, Lasts Longer: Aluminium's natural corrosion resistance is just the start. Our premium finishes – Anodizing, Powder Coat (including tough Fluorocarbon PVDF), and Electrophoresis – lock in color and fight off harsh weather and UV fade for years. It stays looking good.


• The View Steals the Show: Architects love this part. The frameless design maximizes glass, giving you those stunning panoramic views. It delivers that clean, modern aesthetic everyone's after.

Types of Modern Insulated Curtain Walls:

• Stick-Built: Assembled on-site, ideal for complex designs.

• Unitized: Prefabricated modules installed quickly, reducing labor costs.

• Structural Glazing: Glass bonded directly to the frame for seamless aesthetics.

Applications:

• Corporate Headquarters & Office Towers
• High-End Residential Towers
• Luxury Hotels & Resorts
• International Airports & Transportation Hubs
• University Campuses & Educational Facilities
• Hospitals & Healthcare Complexes
• Shopping Malls & Retail Centers
• Museums, Theaters & Cultural Institutions
• Government & Civic Buildings

Advantages:

✔ Energy efficiency & reduced HVAC loads
✔ Noise reduction (acoustic insulation)
✔ Durability & low maintenance
✔ Natural daylight optimization

Challenges:

• Higher upfront cost than traditional walls.

• Requires precision engineering to avoid thermal bridging/condensation issues.

Guangya project Name: Victoria University Sunshine Skills Hub (Melbourne)
Product: Curtain Wall
Area: 4,000㎡

Key Features of the JT180 Series:

• Heavy-Duty Construction: 3.0mm main profile thickness for unmatched strength.
• Integrated Thermal Break: Essential for true energy efficiency and condensation control.
• Frameless Design: Maximizes views and delivers a modern aesthetic.
• Glass Versatility: Compatible with 6mm, 8mm, 10mm, 12mm thicknesses; options include Toughened, Laminated, Double Glazed (IGU), and Low-E glass.
• Robust Material: High-grade alloy aluminium (T3-T8) for structural integrity.
• Full Customization: Tailor the size, shape (complex geometries possible), and choose from a vast color palette (Silver, Bronze, Champagne, Titanium, Nickel, Golden Yellow, etc. – RAL/Pantone matching available).
• Premium Finishes: Choose from Anodizing, Powder Coating, Fluorocarbon Spraying (PVDF), or Electrophoresis.
• What It Does for Your Building:
• Creates the primary weather envelope.
• Controls solar heat gain and thermal loss.
• Manages natural daylighting.
• Provides weather protection (rain, wind).
• Enhances acoustic comfort.
• Delivers critical structural support for the facade.
• Defines the architectural character with a clean, modern look.

170B series frameless curtain wall system
